Masterscreed MS355

MS355 – Lighter Model With Greater Mobility



NO JOB IS TOO SMALL – LIGHTER MODEL WITH GREATER MOBILITY FOR SMALLER AREAS AND UPPER LEVEL FLOORS!


Easy
Transport


Automated Easy
Operation


Fast Setup in
5 mins


Plug and Play
Technology

NO JOB IS TOO SMALL – LIGHTER MODEL WITH GREATER MOBILITY FOR SMALLER AREAS AND UPPER LEVEL FLOORS!

Our Mission

Masterscreed is a leader in high performance concrete laser guided machines. Our products incorporate innovation and the latest technology to deliver maximum productivity.

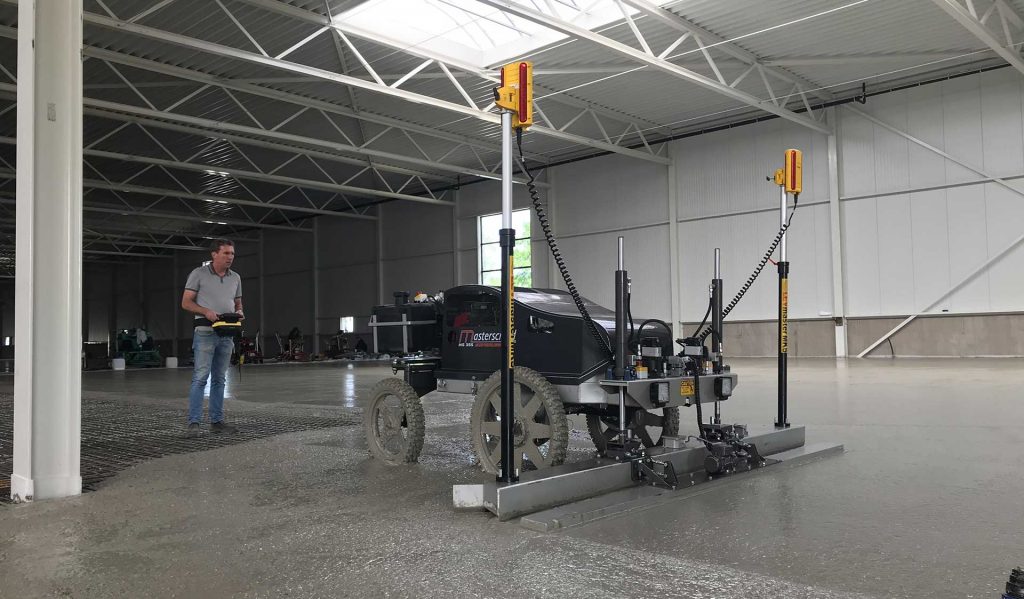

The MS355 is the smallest and most compact addition in the Masterscreed range. It offers greater mobility and is lightweight, whilst providing customers with the same quality as the other models. It has been designed specifically for smaller application and upper level floors and single and double rebar mesh. Now no job is too small for accurate laser precision levelling!

Easy set up, operation, cleaning and transportation makes the MS-355 a valuable asset to any concrete business.

Why Choose MS355

Lightweight design for upper floor decking and high tolerance installations.

01

Remote Control

Masterscreed introduces the LEVmaster Ultimate operating system with the colour display on the remote control which allows the operator to make adjustments and fine tune the Masterscreed via the remote i.e. giving the operator more freedom and flexibility.

02

Jet Wash

The built in high pressure washer enables the operator to position the machine after work is complete near to a water supply for efficient cleaning. This great feature removes the need to use specific cleaning devices, and includes a suction hose with adjustable high flow and long lance trigger.

03

Laser Level

The Trimble® LR410 Laser Receiver is engineered to use in harsh environments. The LR410 is 100% weatherproof and features 360° laser detection. Integrated reference LEDs, located in the corner of each of the four laser receiving windows, show the laser strike location from the center of the receiver, as well as power, and error status, for efficient visual receiver status. Linear Detection Exact laser strike positions to within 1.5mm (0.06") for precise automatic grade control. The LR410 provides a continuous, absolute laser strike position to precisely measure the actual height deviation from “On Grade.” This feature provides high accuracy and grade performance.

04

Honda Engine

Honda 690GX gasoline engine V-twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficency. Not to mention a 3 year warranty.

HIGH OUTPUT PERFORMANCE Fuel economy is similar to fuel injection, with the simplicity of carburetion.

SMOOTH PERFORMANCE 9.3:1 compression ratio generates high power output without the need for premium fuel, exceptionally quiet, proven reliability and easy to use and maintain.

MS355 Specifications:

  • Engine: Honda GX690 22.1HP (16.5kw)
  • Drive : 2WD Drive (4WD optional)
  • Wheels: 2 x 21’ and 2 x 16” MX with non puncturing inner tube
  • Steering: 2 Rear wheels, hydraulic
  • Machine Operation: Wireless remote with 5” colour display
  • Operating system: LEVmaster MK5 advanced operating system with GPS and display diagnostic
  • Laser Receivers: Trimble 2 x LR410
  • Pressure Washer: 2000psi
  • 3D ready, GPS & sonar tracer (optional)

Length

2m (6.5ft)

Width

1.2m (4ft)

Height

1.6m (5’2”ft)

Weight

355kg (782 lb)

If you have any questions on any of our products please feel free to contact us.
