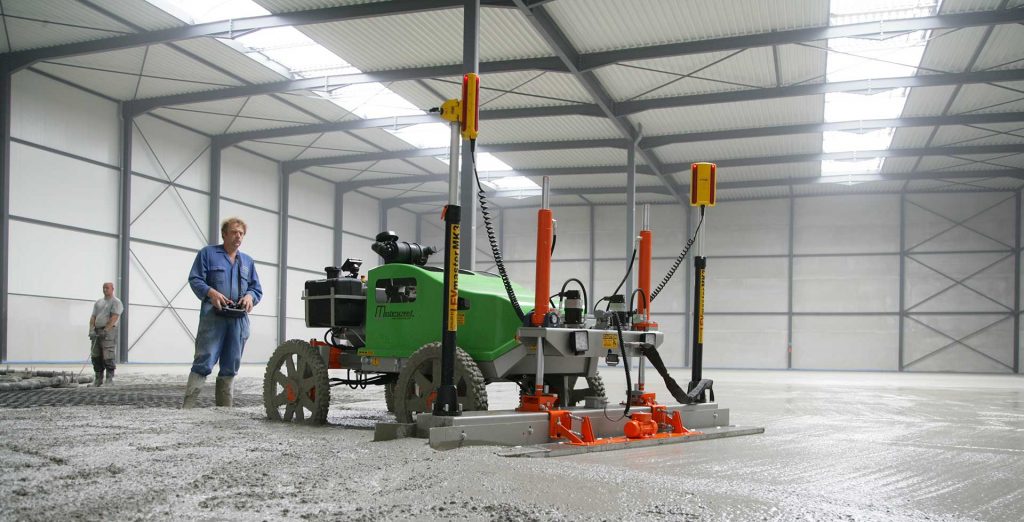

Masterscreed MS550
Automated Laser Guided Screed
The MS550 is equipped with high speed and high accuracy servo valves for the ultimate in level control
Easy
Transport
Automated Easy
Operation
Fast Setup in
5 mins
Plug and Play
Technology
The MS550 is equipped with high speed and high accuracy servo valves for the ultimate in level control
- The MS550 offers a roller screed head which is ideal for multidirectional screeding, steel fibres, pervious concrete and high tolerance floors. The machine is fitted with a quick release clamp for fast and easy connection to elevation cylinders.
- The MS550 design is strong, constructed from premium grade aluminium, TIG welded and 25% lighter than the previous model.
- The MS550 is equipped with high speed and high accuracy servo valves for the ultimate in level control. These are positioned near the elevation cylinder which helps reduce lag time and improves floor tolerance and flatness.
- Provides the ultimate traction with excellent weight distribution, damping element, high resistance to wear, and high dimensional stability for minimal disturbance and footprint left in the concrete.
- This bolt-on accessory enables contractors to add our unique paddle system, which provides additional support and weight distribution for steel mesh/rebar reinforcement or steel decking, and is easy to remove and clean.
Why Choose MS550
Lightweight design for upper floor decking and high tolerance installations.
01
Remote Control
Masterscreed introduces the LEVmaster Ultimate operating system with the colour display on the remote control which allows the operator to make adjustments and fine tune the Masterscreed via the remote i.e. giving the operator more freedom and flexibility.
02
Jet Wash
The built in high pressure washer enables the operator to position the machine after work is complete near to a water supply for efficient cleaning. This great feature removes the need to use specific cleaning devices, and includes a suction hose with adjustable high flow and long lance trigger.
03
Laser Level
The Trimble® LR410 Laser Receiver is engineered to use in harsh environments. The LR410 is 100% weatherproof and features 360° laser detection. Integrated reference LEDs, located in the corner of each of the four laser receiving windows, show the laser strike location from the center of the receiver, as well as power, and error status, for efficient visual receiver status. Linear Detection Exact laser strike positions to within 1.5mm (0.06") for precise automatic grade control. The LR410 provides a continuous, absolute laser strike position to precisely measure the actual height deviation from “On Grade.” This feature provides high accuracy and grade performance.
04
Honda Engine
Honda 690GX gasoline engine V-twin engines offer higher horsepower, improved adaptability, quiet operation, and greater fuel efficency. Not to mention a 3 year warranty.
HIGH OUTPUT PERFORMANCE Fuel economy is similar to fuel injection, with the simplicity of carburetion.
SMOOTH PERFORMANCE 9.3:1 compression ratio generates high power output without the need for premium fuel, exceptionally quiet, proven reliability and easy to use and maintain.
MS550 Specifications:
- Engine: Honda GX690 22.1HP (16.5kw)
- Drive System: 4WD Hydraulic
- Steering System: 2 Wheels Hydraulic Height: 4’ (1.2m)
- Width: 3’ 6” (1.05m) *Transport Length: 8’ 2” (2.45m)
- Weight: 1,250lbs (550kg) *Dry weight fuel tank: 6.6 Gallons (25L)
- Elevation Control: LEVmasterTM System
- Diagnostic: Hydraulic, Electrical and Laser via 7” colour display machine operation control: Wireless Remote
- Laser Receivers: Trimble® 2 x LR410
- 3D capable, GPS: Optional
- Pressure Washer: 2000psi (optional)
Length
2m (6.5ft)
Width
1.2m (4ft)
Height
1.6m (5’2”ft)
Weight
355kg (782 lb)
