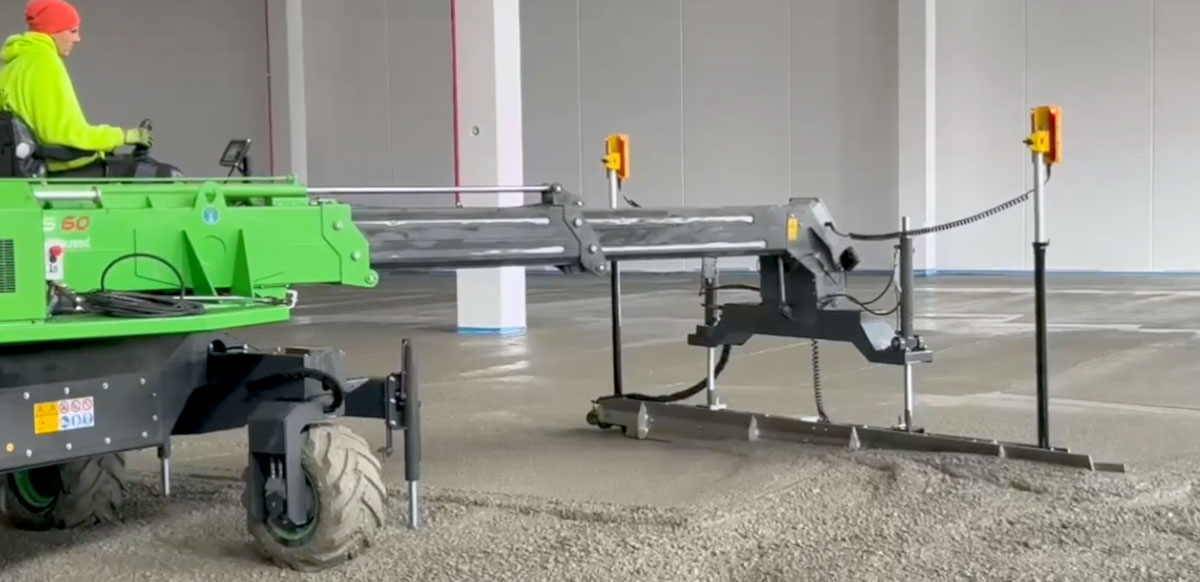

Masterscreed MS60
Powerful, Versatile and Intelligent Automated Screed

Groundbreaking Specification

The MS60 is capable of high production, precise results and easier transport than traditional large screed

The MS60 our large line screed world’s 1st large line screed with rotating boom, rotating head and 180 degree steering, offers unmatched maneuverability and comfort on job site.
The MS60 is equipped with the LEVmaster Ultimate advanced operating system – it has ground-breaking and cutting edge technology including many features that allow the operator to fine tune the MS60 to different applications for ultimate performance.
Remote diagnostic – optional wireless remote diagnostic which allows our technicians to remotely Diagnose faults and take corrective action and change settings to improve performance or prevent problems from anywhere in the world, so that any issues that may arise can be resolved quickly, resulting in less downtime.
Variable vibrator – the LEVmaster Ultimate is fitted with a variable vibrator which allows the operator to adjust the vibration force and speed via remote for ultimate compaction.
Auto calibration – the MS60 is equipped with customised auto calibration valves and sensors to consistently achieve great results.

Concrete slump – the LEVmaster Ultimate has seven settings which the operator can select that enable the MS60to function at its best in all types of concrete slumps (low to high).
3D / GPS and Sonar Sonic – the MS60 is fully compatible to work with multi-grade applications.
Laser grade set-up – laser receivers mast is fitted on the edge of the screed head for accurate positioning, with quick grade set-up allowing operators to set datum levels in a matter of seconds.

Data logging – the optional data logger allows contractors to keep records for each job, which can be downloaded and printed in graph format.
The MS60 is constructed from premium grade material, for superior strength whilst reducing weight, which makes it possible to use many applications, and easy for transport.
A pressure washer is mounted on the MS60, making cleaning after work easier and quicker

Boom length: 6m (20ft)
Screed width: 3.6m (12ft) 4m (14ft) optional
Machine width 1.9m (6ft2”)
Machine length 4.9m (16”)
Weight 2650kg (5850lbs)
Automated self-levelling
Steering automated 90 degree configuration for easy access job site
Rotating telescopic boom
Rotating screed head (optional)
Operator single joystick
Radio control full operational Kubota 19kw (25hp) 4 cylinder Specifications EFI diesel engine offers high power with low fuel consumption and has a 2-year warranty.

6m (20ft)

3.6m (12ft)

1.9m (6’2”ft)

2650kg (5,850 lb)
